Overview
Configuration is provided for establishing connections with the Hadoop WebHDFS service. The configuration is used in the REST Connection Manager.
Setup
Press
icon to get more information about the connection parameters.
Obtain data
Use REST Source component to get data from service resource.
Insert data
Use REST Destination component to insert data into service resource.
Manage remote files and directories
Use File Transfer Task to manage remote files and directories.
Quick Start
In this section, we will show you Step-by-Step how to create a connection to the Hadoop WebHDFS service using COZYROC's REST Connection Manager.
Step 1. Run "Visual Studio" under "Administrator account". Select the "Data Flow task" tab and click "Add new Data flow task"

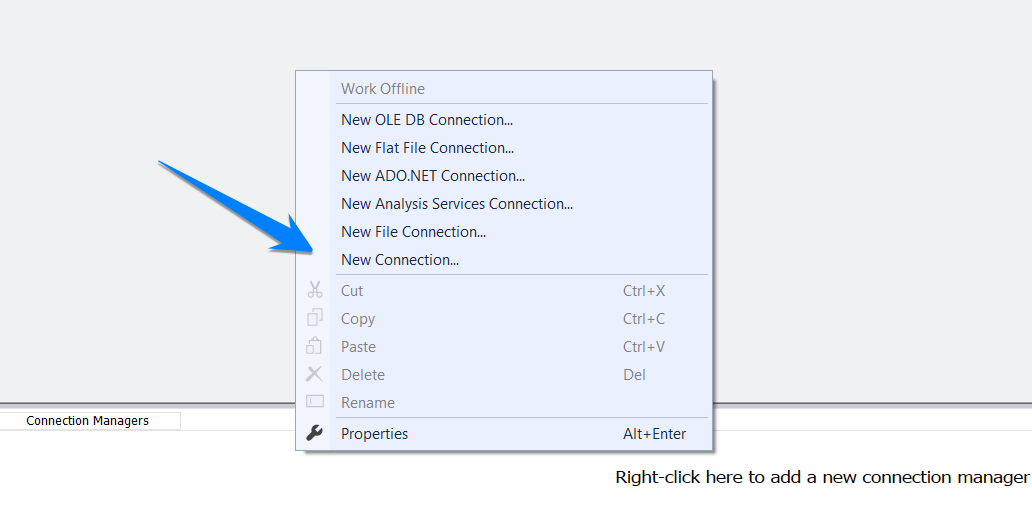

Step 2. Right click on the "Connection managers" tab and select New Connection
Step 3. In the "Add SSIS Connection Manager" menu scroll down, select REST and click "Add"

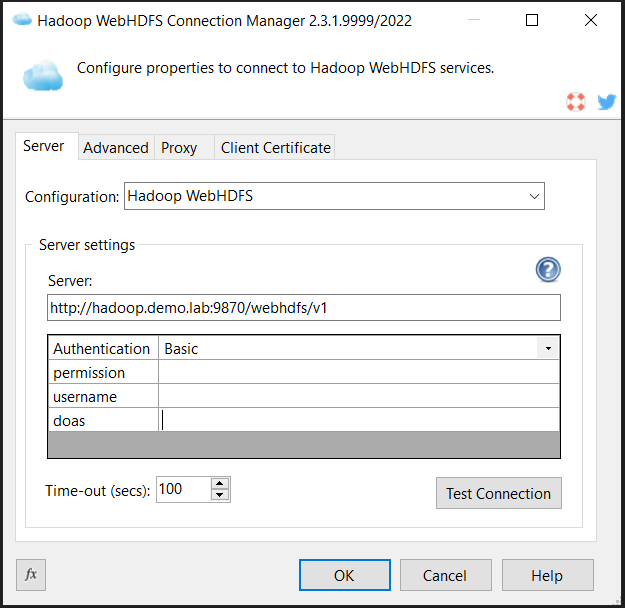

Step 4. From the configuration drop-down menu select Hadoop WebHDFS. If you are utilizing a Windows KDC, you needn't change anything, the REST engine will handle the authentication and ticket management for you.

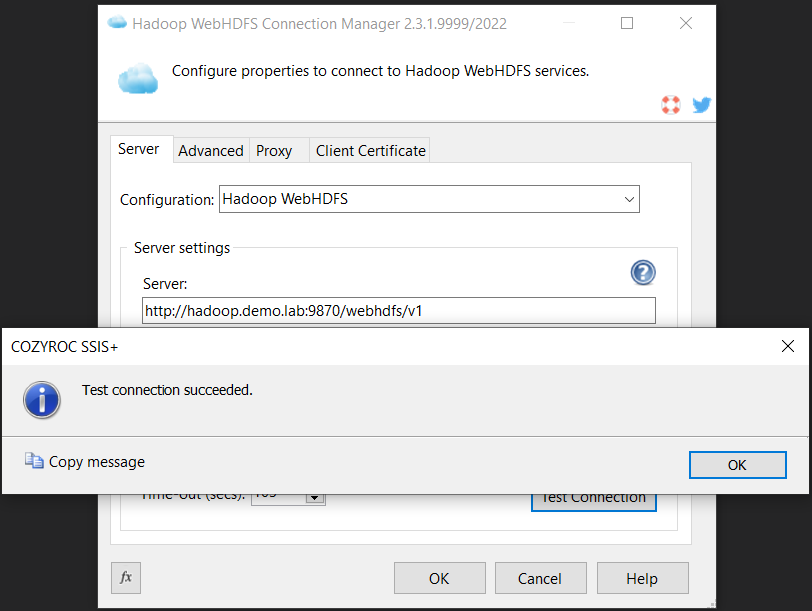

Step 5. Click Test Connection and verify it's success.
Bravo! You have learned how to authenticate to Hadoop WebHDFS.
In MIT-Kerberos scenarios you would need to use the delegation token.

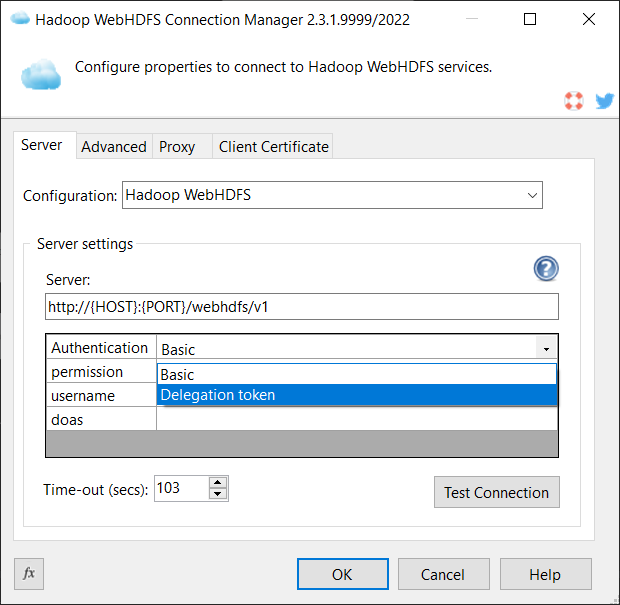

Step 1. After completing steps 1-3 from the "Establish connection" panel, click on the Authentication dropdown and select the Delegation token option.
Step 2. To generate your Delegation token execute the command below on a Kerberos authorized host (usually an agent machine):
curl --negotiate "http://[HadoopHost]:[NameNodePort]/webhdfs/v1/?op=GETDELEGATIONTOKEN&renewer=[Username]"

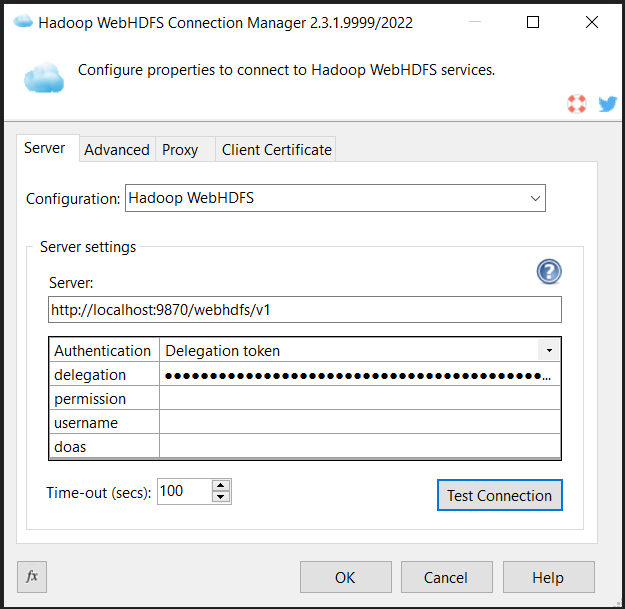

Step 3. Extract the token from the response and paste it in the delegation field.
Step 4. Refreshing a token is done with a simple command, that also has to be executed from an authenticated and authorized machine. That can be done easily with the COZYROC Powershell Task.
curl --negotiate -X PUT "http://[HadoopHost]:[NameNodePort]/webhdfs/v1/?op=RENEWDELEGATIONTOKEN&token=[Token]"
NOTE: Only the lifetime is extended, the token value remains the same.

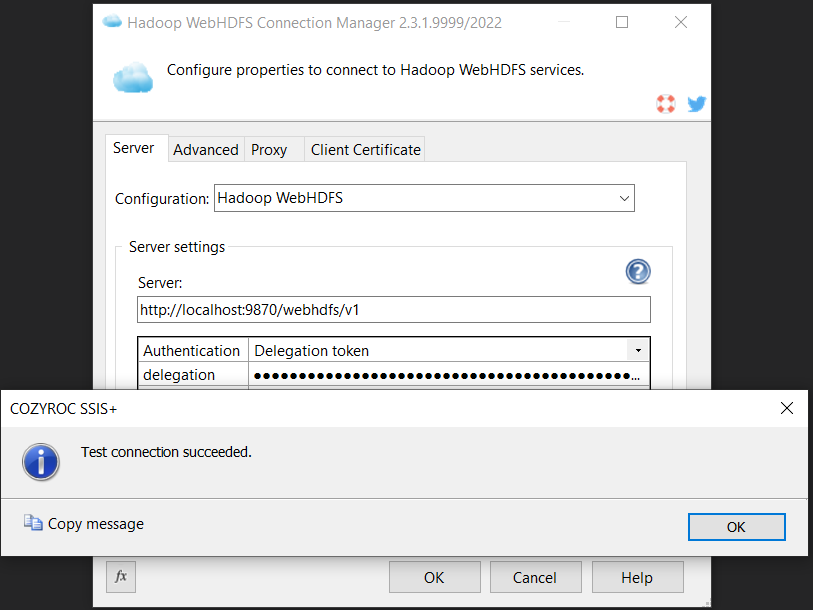

Step 5. Click Test Connection and verify it's success.
Bravo! You have learned how to use a delegation token to authenticate to Hadoop WebHDFS.
Configuration
Base URL address: http://{HOST}:{PORT}/webhdfs/v1.
- Basic
-
The authentication uses a parameters-based authentication.
The authentication has the following user-defined parameters:
- permission: Specify permission query string. Optional.
- username: Specify user.name query string. Optional.
- doas: Specify proxy user query string. Optional.
The following request parameters will be automatically processed during the authentication process:
-
permission:
{{=connection.user.permission}} -
user.name:
{{=connection.user.username}} -
doas:
{{=connection.user.doas}}
Documentation: https://hadoop.apache.org/docs/r1.0.4/webhdfs.html#Authentication.
- Delegation token
-
The authentication uses a parameters-based authentication.
The authentication has the following user-defined parameters:
- delegation: Required. Specify Kerberos delegation token.
- permission: Specify permission query string. Optional.
- username: Specify user.name query string. Optional.
- doas: Specify proxy user query string. Optional.
The following request parameters will be automatically processed during the authentication process:
-
delegation:
{{=connection.user.delegation}} -
permission:
{{=connection.user.permission}} -
user.name:
{{=connection.user.username}} -
doas:
{{=connection.user.doas}}
Documentation: https://hadoop.apache.org/docs/r1.0.4/webhdfs.html#Authentication.
Based on resource template BaseWithPath.
- [Read] action
-
The result is extracted from:{{=[response.ContentSummary]}}.The following request parameters will be automatically processed:
-
op:
GETCONTENTSUMMARY
Documentation: https://hadoop.apache.org/docs/r1.0.4/api/org/apache/hadoop/fs/FileSystem.html#getContentSummary(org.apache.hadoop.fs.Path).
-
op:
- directoryCount
Template: Long.
- fileCount
Template: Long.
- length
Template: Long.
- quota
Template: Long.
- spaceConsumed
Template: Long.
- spaceQuota
Template: Long.
Based on resource template BaseWithPath.
- [Read] action
-
The result is extracted from:{{=[response.FileChecksum]}}.The following request parameters will be automatically processed:
-
op:
GETFILECHECKSUM
Documentation: https://hadoop.apache.org/docs/r1.0.4/webhdfs.html#GETFILECHECKSUM.
-
op:
- algorithm
Template: ShortText.
- bytes
Template: LongText.
- length
Template: Int4.
Based on resource template Base.
- [Read] action
-
Endpoint URL address:
/.
The result is extracted from:{{=[response]}}.The following request parameters will be automatically processed:
-
op:
GETHOMEDIRECTORY
Documentation: https://hadoop.apache.org/docs/r1.0.4/webhdfs.html#GETHOMEDIRECTORY.
-
op:
- Path
Template: ShortText.
Based on resource template Base.
- [Create] action
-
Endpoint URL address:
{{=item.path}}.The following request parameters will be automatically processed:
-
op:
SETPERMISSION -
permission:
{{=item.permission}}
Documentation: https://hadoop.apache.org/docs/r1.0.4/webhdfs.html#SETPERMISSION.
-
op:
- path
Template: ShortText.
- permission
Template: Int4.
Based on resource template Base.
- [Create] action
-
Endpoint URL address:
{{=item.path}}.The following request parameters will be automatically processed:
-
op:
SETOWNER -
owner:
{{=item.owner}} -
group:
{{=item.group}}
Documentation: https://hadoop.apache.org/docs/r1.0.4/webhdfs.html#SETOWNER.
-
op:
- path
Template: ShortText.
- owner
Template: ShortText.
- group
Template: ShortText.
Based on resource template Base.
- [Create] action
-
Endpoint URL address:
{{=item.path}}.The following request parameters will be automatically processed:
-
op:
SETREPLICATION -
replication:
{{=item.replication}}
Documentation: https://hadoop.apache.org/docs/r1.0.4/webhdfs.html#SETREPLICATION.
-
op:
- path
Template: ShortText.
- replication
Template: Int4.
Based on resource template Base.
- [Create] action
-
Endpoint URL address:
{{=item.path}}.The following request parameters will be automatically processed:
-
op:
SETTIMES -
modificationtime:
{{=item.modificationtime}} -
accesstime:
{{=item.accesstime}}
Documentation: https://hadoop.apache.org/docs/r1.0.4/webhdfs.html#SETTIMES.
-
op:
- path
Template: ShortText.
- modificationtime
Template: ShortText.
- accesstime
Template: ShortText.
- [Read] action
-
The following request parameters will be automatically processed:
-
_includeUserParameters:
{{=parameters}}
-
_includeUserParameters:
- [Create] action
-
The action uses PUT method.The following request parameters will be automatically processed:
-
_includeUserParameters:
{{=parameters}}
-
_includeUserParameters:
- [Delete] action
-
The action uses PUT method.The following request parameters will be automatically processed:
-
_includeUserParameters:
{{=parameters}}
-
_includeUserParameters:
- [Read] action
-
Endpoint URL address:
{{=parameters.Path}}.The action has the following user-defined parameters:
- Path: Required. The directory path.
- ShortText
Data type: DT_WSTR ( length 250 )
- LongText
Data type: DT_WSTR ( length 1000 )
- DateTime
Data type: DT_DBTIMESTAMP
- Date
Data type: DT_DBDATE
- Int4
Data type: DT_I4
- Long
Data type: DT_I8
Knowledge Base
What's New
- New: Introduced connection.
